Baluns  (4B1)

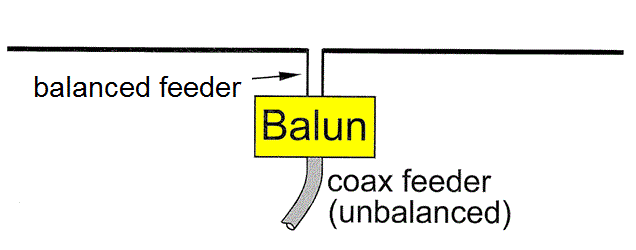

In order to connect an unbalanced feeder to a balanced antenna (e.g. coax feeding a dipole) a transformer known as a balun is needed.



BALUN:   BALanced - UNbalanced



Without a Balun rf currents flow on the outside braid, and the screening properties of coax are lost
